2200mAh Battery: Will It Meet Your Power Needs?

By Ufine, Updated on March 23, 2025

Share the page to

Among the various battery capacities available, the 2200mAh battery stands out as a popular choice for many electronic applications. From smartphones and laptops to power tools, drones, and medical devices, this battery capacity offers a balance between size, power, and longevity.

However, selecting the right 2200mAh battery requires an understanding of battery chemistry, voltage, discharge rates, and cycle life. In this article, we will provide a detailed, professional, and technical breakdown of 2200mAh batteries, their types, specifications, and how to determine if they are suitable for your device.

If you need a custom lithium battery solution, Ufine Battery, a leading Chinese lithium battery manufacturer, offers high-quality customized lithium-ion batteries, lithium polymer batteries, 18650 batteries, LiFePO4 batteries, and more.

Part 1. What does 2200mAh mean on a battery?

The term 2200mAh (milliampere-hour) refers to the battery’s capacity—a measure of how much charge the battery can store and deliver over time. It indicates how long the battery can power a device before needing a recharge.

In simple terms:

A 2200mAh battery can theoretically provide 2200mA (2.2A) of current for one hour or 1100mA (1.1A) for two hours.
The actual runtime depends on power consumption, efficiency, and environmental factors.

Understanding Battery Capacity vs. Energy

Although capacity is measured in mAh, the actual energy stored in a battery is determined by its watt-hours (Wh), which is calculated as:

Watt-hours (Wh)=Capacity (Ah)×Voltage (V)

For example:

A 3.7V 2200mAh Li-ion battery: 2.2Ah×3.7V=8.14Wh
A 7.4V 2200mAh LiPo battery: 2.2Ah×7.4V=16.28Wh

Thus, a higher voltage battery will store more energy even if both have the same 2200mAh rating.

Part 2. 2200mAh battery types

Batteries with a 2200mAh capacity can be made from different chemical compositions, each offering unique advantages and trade-offs.

1. Lithium-Ion (Li-Ion) Batteries

Nominal Voltage: 3.7V
Rechargeable: Yes
Energy Density: High
Applications: Laptops, smartphones, cameras, power tools
Pros: Lightweight, high capacity, low self-discharge
Cons: Requires Battery Management System (BMS) for safety

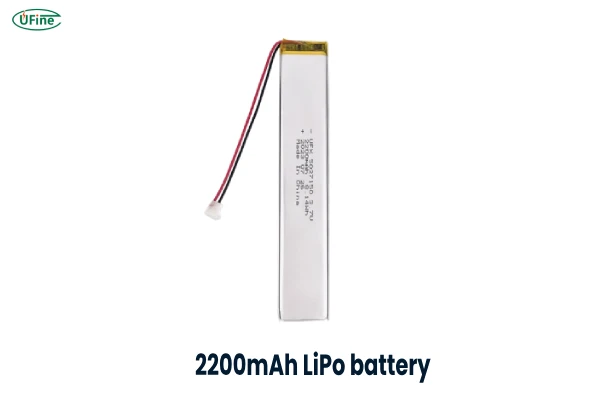

2. Lithium Polymer (LiPo) Batteries

Nominal Voltage: 3.7V – 7.4V
Rechargeable: Yes
Energy Density: Moderate to high
Applications: Drones, RC cars, medical devices
Pros: Flexible shape, lightweight, high discharge rate
Cons: Prone to swelling if overcharged or damaged

3. Lithium Iron Phosphate (LiFePO4) Batteries

Nominal Voltage: 3.2V
Rechargeable: Yes
Energy Density: Lower than Li-ion
Applications: Solar storage, EVs, UPS backup systems
Pros: Long lifespan (2000+ cycles), excellent safety, stable performance
Cons: Lower energy density compared to Li-ion

4. Nickel-Metal Hydride (NiMH) Batteries

Nominal Voltage: 1.2V
Rechargeable: Yes
Energy Density: Lower than lithium-based batteries
Applications: Cordless phones, cameras, toys
Pros: Less toxic than NiCd, good cycle life
Cons: Higher self-discharge rate than Li-ion

Each type of 2200mAh battery has specific applications, and selecting the right one depends on voltage requirements, discharge rate, and longevity needs.

Part 3. 2200mAh battery voltage

The voltage of a 2200mAh battery varies based on its chemistry:

Battery Type	Nominal Voltage	Fully Charged Voltage
Li-Ion (18650)	3.7V	4.2V
LiPo	3.7V – 7.4V	4.2V – 8.4V
LiFePO4	3.2V	3.6V
NiMH	1.2V	1.4V

Using the correct voltage is essential to avoid damaging your device or battery. If unsure, consult your device manufacturer or a battery expert like Ufine Battery.

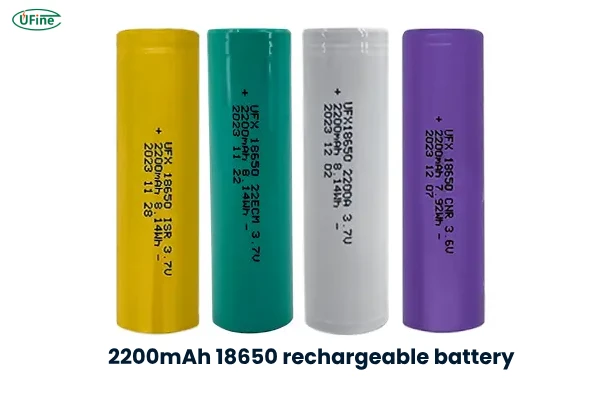

Part 4. 2200mAh 18650 rechargeable battery

The 18650 lithium-ion battery is one of the most common 2200mAh battery formats, offering:

Standard Size: 18mm x 65mm
Voltage: 3.7V nominal, 4.2V max
Recharge Cycles: 300 – 500 cycles

It is widely used in:

✅ Laptops and power banks

✅ Electric bicycles and scooters

✅ Medical and industrial devices

Part 5. Connecting multiple 2200mAh Batteries

When a single 2200mAh battery does not provide enough power or capacity for your device, connecting multiple batteries can be a solution. However, it is crucial to understand the correct way to connect them to achieve the desired voltage and capacity while ensuring safety and efficiency.

In this section, we will explore two common methods of connecting 2200mAh batteries: parallel and series connections.

1. Connecting 2200mAh Batteries in Parallel (Increase Capacity)

How Does a Parallel Connection Work?

When batteries are connected in parallel, their capacity (mAh) increases, while the voltage remains the same as that of a single battery.

Formula for Parallel Connection:

Total Capacity (mAh) = Sum of all battery capacities
Voltage = Voltage of a single battery

For example, if you connect two 2200mAh 3.7V batteries in parallel, the result is:

Total Capacity=2200mAh+2200mAh=4400mA

Total Voltage=3.7V

If you connect three batteries, you get:

Total Capacity=2200mAh×3=6600mA

Total Voltage=3.7V

Advantages of a Parallel Connection:

✅ Increases battery life – The device can run longer before needing a recharge.

✅ Provides more energy storage – Ideal for power banks and solar storage systems.

✅ Maintains safe voltage levels – Useful for devices that require a fixed voltage.

Disadvantages of a Parallel Connection:

❌ Longer charging time – Since capacity increases, charging takes longer.

❌ Requires balancing – Unequal charge levels between batteries can cause problems.

❌ Must use identical batteries – Mixing different capacities or old and new batteries can lead to imbalance and damage.

2. Connecting 2200mAh Batteries in Series (Increase Voltage)

How Does a Series Connection Work?

When batteries are connected in series, their voltage increases, but the capacity (mAh) remains the same as a single battery.

Formula for Series Connection:

Total Voltage = Sum of all battery voltages
Capacity (mAh) = Same as a single battery

For example, if you connect two 2200mAh 3.7V batteries in series, the result is:

Total Voltage=3.7V+3.7V=7.4V Total Capacity=2200mAh

If you connect three batteries, you get:

Total Voltage=3.7V×3=11.1V

Total Capacity=2200mAh

Advantages of a Series Connection:

✅ Higher voltage output – Suitable for devices that require more voltage, like power tools and electric vehicles.

✅ More power delivery – Higher voltage allows for greater efficiency in some applications.

✅ Faster charging – Since capacity does not increase, charging time remains the same as a single battery.

Disadvantages of a Series Connection:

❌ No increase in battery life – The overall capacity remains the same.

❌ Requires a Battery Management System (BMS) – To prevent overcharging and over-discharging.

❌ Risk of imbalance – One weak battery can affect the entire system’s performance.

3. Connecting 2200mAh Batteries in a Series-Parallel Configuration (Increase Both Voltage and Capacity)

For devices that need both higher voltage and longer runtime, you can use a series-parallel combination. This involves connecting multiple sets of batteries in parallel and then connecting those sets in series.

For example, if you need a 7.4V 4400mAh battery pack, you can connect four 2200mAh 3.7V batteries as follows:

Two batteries in parallel (3.7V, 4400mAh)
Another two batteries in parallel (3.7V, 4400mAh)
Connect both parallel sets in series to get 7.4V, 4400mAh

This method is used in electric vehicles, solar energy storage, and industrial applications.

4. Safety Precautions When Connecting 2200mAh Batteries

🔴 Use identical batteries – Ensure all batteries have the same voltage, capacity, and chemistry to prevent imbalances.

🔴 Charge batteries evenly – If using old and new batteries together, charge them to the same level before connecting.

🔴 Use a Battery Management System (BMS) – A BMS protects against overcharging, deep discharging, and overheating.

🔴 Check polarity before connecting – Reversing connections can cause short circuits and damage.

🔴 Avoid excessive connections – While adding more batteries increases power, too many batteries can become difficult to manage and increase safety risks.

Part 6. How long can a 2200mAh battery run?

To estimate battery runtime, use:

Runtime (hours)=Battery Capacity (mAh)/Device Power Consumption (mA)

Example: A 2200mAh battery powering a 200mA LED light:

2200mAh/200mA =11 hours

For higher power devices, the runtime will be shorter.

Part 7. How long does it take to charge a 2200mAh battery?

Charging time depends on the charger’s current output (A). You can estimate it with:

Charging Time=Battery Capacity (mAh)/Charger Current (mA)

For example, using a 1A (1000mA) charger:

2200mAh/1000mA =2.2 hours

A faster charger (2A) would take around 1.1 hours.

Part 8. FAQs

1. Can I replace a 2000mAh battery with a 2200mAh battery?

Yes, if the voltage matches, the battery will simply last longer.

2. Can a 2200mAh Li-ion battery be replaced with a LiFePO4 battery?

Not directly, as LiFePO4 has a lower voltage (3.2V vs. 3.7V).

3. Can I use a 2200mAh battery in a device designed for a lower capacity battery?

Yes, as long as the voltage and size match, a 2200mAh battery can replace a lower-capacity battery. The only difference is that the 2200mAh battery will last longer before needing a recharge.

4. What is the difference between a 2200mAh Li-ion battery and a 2200mAh LiPo battery?

Both are lithium-based batteries, but LiPo batteries have a soft, flexible pouch design, whereas Li-ion batteries typically come in cylindrical (18650) or prismatic form. LiPo batteries also handle higher discharge rates better, making them ideal for RC vehicles and drones.

5. Can I charge a 2200mAh battery with any charger?

No, you must use a charger compatible with the battery chemistry and voltage. For example, a 3.7V 2200mAh Li-ion battery requires a 4.2V charger. A 7.4V LiPo battery needs a balanced LiPo charger to prevent overcharging and swelling.

6. Can a 2200mAh battery explode?

While rare, overcharging, overheating, or physical damage can cause lithium-ion or lithium-polymer batteries to overheat and potentially explode.

6. How does temperature affect a 2200mAh battery’s performance?

Extreme temperatures reduce battery efficiency. Cold temperatures slow down electrochemical reactions, reducing capacity. High temperatures can cause the battery to degrade faster or even overheat.

For best results, use batteries in recommended temperature ranges (usually 0°C to 45°C / 32°F to 113°F).

7. Is a 2200mAh battery enough for a drone?

It depends on the drone’s power consumption and weight capacity. While a 2200mAh LiPo battery is common in entry-level drones, high-performance drones may need higher capacities (e.g., 5000mAh+ LiPo) for longer flight times.
