How to Wire Batteries in Series: Step-by-Step Guide

By Gerald, Updated on February 12, 2025

Share the page to

When you need more voltage than a single battery can provide, wiring batteries in series is a popular and effective solution. By connecting multiple batteries in series, you can increase the total voltage while maintaining the same current capacity. This method is widely used in various applications, from electric vehicles to solar energy storage systems.

In this guide, we’ll walk you through the process of wiring batteries in series, explain the key benefits and risks, and offer expert tips on how to do it safely. As a leading manufacturer of custom lithium batteries, Ufine Battery has extensive experience in providing tailored solutions for projects that require customized voltage and capacity.

Part 1. What does wiring batteries in series mean?

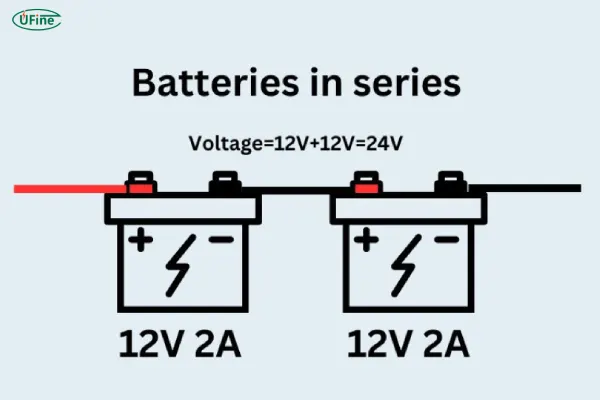

Wiring batteries in series means connecting multiple batteries end-to-end in a chain, where the positive terminal of one battery connects to the negative terminal of the next. This setup increases the voltage of the system while keeping the amp-hour (Ah) rating the same as a single battery.

For example, if you connect two 3.7V batteries in series, the total voltage will be 7.4V, but the current capacity will remain that of one individual battery. This is ideal when you need to power devices that require higher voltages but don’t need to increase the available current.

Part 2. Why wire batteries in series?

There are several reasons why wiring batteries in series is beneficial for certain applications:

1. Increased Voltage

The most obvious reason to wire batteries in series is to achieve the desired voltage. Many applications require more voltage than a single battery can provide. For example:

Electric vehicles (EVs) often use multiple batteries wired in series to provide the necessary voltage for the motor.
Solar systems may need higher voltages to charge large battery banks effectively.

2. Cost Efficiency

Instead of purchasing a high-voltage battery, you can wire lower-voltage batteries in series, which is often a more cost-effective solution. This approach is especially popular in DIY energy storage projects.

3. Versatility

Wiring batteries in series allows you to combine different battery types and voltages to meet specific power requirements. It offers flexibility, especially when working with custom lithium batteries, which Ufine Battery can tailor to your needs.

Part 3. How to wire batteries in series?

Step-by-Step Guide

Wiring multiple batteries in series requires a clear understanding of the electrical properties and safety precautions. Here’s how to do it:

1. Prepare Your Batteries

Ensure that all the batteries are of the same type, voltage, and capacity. Mixing different types or capacities of batteries can cause imbalances and lead to failures or reduced performance.
For instance, when using lithium-ion or LiFePO4 batteries (common for electric vehicles or solar storage systems), it’s essential that all batteries have the same voltage and capacity to avoid complications.

2. Connect the Batteries

Begin by connecting the positive terminal of the first battery to the negative terminal of the second battery.
Continue this pattern for each subsequent battery in the series.

The last battery’s negative terminal will be your system’s negative output, and the first battery’s positive terminal will be your positive output.

3. Check Voltage and Ensure Balance

Once the batteries are connected in series, use a multimeter to check the total voltage. If each individual battery is 3.7V, wiring three batteries in series should give you 11.1V. Ensure that the system is balanced and that the batteries are charging and discharging evenly.

Part 4. Important considerations when wiring batteries in series

1. Battery Matching

Ensure that the batteries you are wiring together are from the same manufacturer and have the same voltage, capacity, and chemistry (e.g., Li-ion, LiFePO4). Ufine Battery specializes in custom lithium batteries, and we always ensure our batteries meet your specific requirements to guarantee safety and efficiency in series configurations.

2. Use of Battery Management System (BMS)

A Battery Management System (BMS) is essential when wiring batteries in series. The BMS helps:

Balance the charge across all batteries.
Prevent overcharging or deep discharging, which can lead to battery failure.
Monitor the health of each individual battery to ensure safe operation.

3. Correct Wiring and Safety

It’s important to use adequate wiring and components designed for the voltage and current your system will generate. Ensure that the wires and connectors are properly rated for the electrical load. Ufine Battery can provide expert advice on choosing the right wiring and components for your battery systems.

Part 5. Charging batteries wired in series

When you wire batteries in series, you need a charger that matches the total voltage of the series configuration. For example:

If you wire three 3.7V batteries in series, the total voltage is 11.1V, so you need a charger designed for 11.1V lithium batteries.
Always use a charger specifically designed for the battery type to avoid damaging the batteries or causing safety issues.

Part 6. Can I mix different battery types when wiring in series?

No, you should not mix different types of batteries when wiring in series. Battery matching is crucial to ensure that each battery in the series performs optimally. Here’s why:

1. Voltage Imbalance

Each battery has its own voltage and capacity. If you mix batteries with different voltages, one battery may overcharge or discharge too quickly, causing an imbalance in the system. This imbalance could lead to significant performance degradation and even damage to the batteries.

2. Different Chemistry

Different battery chemistries (e.g., LiFePO4, Li-ion, NiMH) have distinct charging and discharging characteristics. Mixing these types in a series configuration can result in poor performance, increased risks of failure, and safety hazards like thermal runaway.

3. Lifetime Impact

When you combine batteries with different capacities or chemistries, one battery may be undercharged or overcharged in comparison to others. This can significantly shorten the lifetime of the battery bank, as each battery may age at different rates.

To ensure safety, consistency, and optimal performance, it’s always best to use identical batteries when wiring them in series. If you need custom battery solutions, Ufine Battery can help you design a set of batteries that are matched to your specific needs, offering consistent voltage and capacity.

Part 7. Do I need a BMS when wiring batteries in series?

Yes, you absolutely need a Battery Management System (BMS) when wiring batteries in series. A BMS is essential for maintaining the health and efficiency of the battery pack, especially in series configurations. Here’s why:

1. Battery Balancing

When batteries are wired in series, they may experience different charge levels due to slight variations in their internal resistance. A BMS helps balance the charge across all the batteries, ensuring that each battery charges and discharges evenly. Without balancing, the battery with the lowest charge can become over-discharged, while the highest-charged one may become overcharged, both of which can lead to battery damage or failure.

2. Overcharging Protection

In a series configuration, if one battery gets overcharged, it can cause dangerous conditions such as thermal runaway. A BMS monitors the voltage and current of each battery, cutting off power if any battery exceeds its safe voltage limit.

3. Undercharging Protection

Similarly, undercharging one battery in a series string can create an imbalance, shortening its lifespan. The BMS ensures that each battery remains within a safe voltage range, protecting the entire pack from potential damage.

4. Temperature Monitoring

A BMS can also monitor the temperature of the batteries in real-time, preventing overheating during charging or discharging cycles. This is especially important for lithium batteries which are sensitive to temperature fluctuations.

5. Safety Features

The BMS acts as a safety net, shutting down the system in case of critical failures, such as overcurrent, short circuits, or voltage spikes. This level of protection is vital for the longevity and safety of your battery pack.

If you are unsure about selecting the right BMS for your project, Ufine Battery can provide customized solutions and advice, ensuring that your batteries are safely managed and maintained throughout their lifecycle.

Part 8. How do I balance batteries wired in series?

Balancing batteries in series ensures that all batteries in the pack are charged and discharged evenly. An imbalanced series can lead to poor performance, shortened lifespan, and safety hazards. Here’s how to do it effectively:

1. Use a Battery Management System (BMS)

As discussed earlier, a BMS plays a crucial role in balancing batteries in a series configuration. The BMS monitors the voltage of each individual battery and adjusts the charging process to ensure that no single battery gets overcharged or undercharged. This is the most reliable method of balancing batteries in series.

2. Equalize Battery Voltage

Before wiring the batteries in series, make sure they have similar voltage levels. If they are not the same, you can use a charger to bring them to the same voltage level before connecting them together. This helps prevent any one battery from being stressed more than the others once connected.

3. Regular Monitoring

Even with a BMS, it’s important to regularly monitor the voltage and health of each battery in the series. You can use a multimeter or battery monitor to track the voltage and ensure that all batteries are staying within the optimal voltage range.

4. Equalizing Charge

If you’re using a Lead-Acid battery pack in series, you might need to perform an equalizing charge to balance the voltage across all batteries. This is a special charging process where you slightly overcharge the pack to ensure all batteries reach their full charge.

5. Temperature Monitoring

Temperature differences between batteries can lead to uneven charging and discharging. Ensure that all batteries in the series are kept at similar temperatures, and the BMS should have thermal monitoring to prevent any one battery from overheating.

Part 9. What happens if I wire batteries with different voltages in series?

Wiring batteries with different voltages in series is highly problematic and should be avoided. Here’s why:

1. Imbalanced Voltage Levels

When you wire batteries with different voltages in series, the total voltage will be unbalanced. The battery with the lower voltage may be forced to overcharge or undercharge, while the battery with a higher voltage will discharge more quickly than the others. This imbalance can lead to significant performance issues and safety risks.

2. Reduced Battery Lifespan

Different voltage levels can cause the battery pack to function poorly, and individual batteries may age at different rates. This results in reduced capacity and a shorter lifespan for the entire battery bank.

3. Safety Concerns

Mixing batteries with different voltages can cause overheating, overcharging, and potentially even thermal runaway in extreme cases. This could result in fires, explosions, or complete battery failure. For lithium batteries, in particular, this can be dangerous due to their sensitivity to voltage imbalances.

4. Risk of Permanent Damage

The internal chemistry of the batteries may become permanently damaged if one battery is overcharged or over-discharged due to voltage imbalances. This can be costly, as it may require you to replace individual batteries or even the entire pack.

To avoid these risks, ensure that all the batteries you use in a series connection have the same voltage, capacity, and chemistry. Ufine Battery specializes in providing custom lithium batteries that are perfectly matched to ensure safety and efficiency, particularly for high-voltage systems.

Part 10. Conclusion

Wiring batteries in series is a straightforward process, but it requires careful attention to detail. Ensuring that the batteries are identical, using a Battery Management System (BMS), and monitoring the system’s voltage and balance are essential to maintaining the safety and performance of the battery pack. With Ufine Battery’s expertise, you can be confident that your battery configurations will meet your power needs efficiently and safely.

If you need custom battery solutions, we are ready to help you design and manufacture the perfect batteries for your application. Contact Ufine Battery today to learn more about our high-quality, custom-made lithium batteries.
