The Ultimate Guide to 12V 18650 Battery Packs: Design, Benefits, and Applications

By Ufine, Updated on March 24, 2025

Share the page to

Part 1. What is a 12V 18650 battery pack?
Part 2. Benefits of using 12V 18650 battery packs
Part 3. Applications of 12V 18650 battery packs
Part 4. Designing your own 12V 18650 battery pack
Part 5. 12V 18650 battery pack: safety precautions
Part 6. Maintenance tips for 12V 18650 battery packs
Part 7. 12V 18650 battery pack: troubleshooting common issues
Part 8. Where to buy 12V 18650 battery packs?
Part 9. 12V 18650 battery pack: cost considerations
Part 10. 12V 18650 battery pack: regulations and standards
Part 11. FAQs About 12V 18650 Battery Packs

Are you looking for a reliable and efficient power source for your devices? The 12V 18650 battery pack might be precisely what you need. These battery packs are becoming increasingly popular due to their versatility, high energy density, and long lifespan. This guide explores everything you need about 12V 18650 battery packs, including their design, benefits, applications, and frequently asked questions.

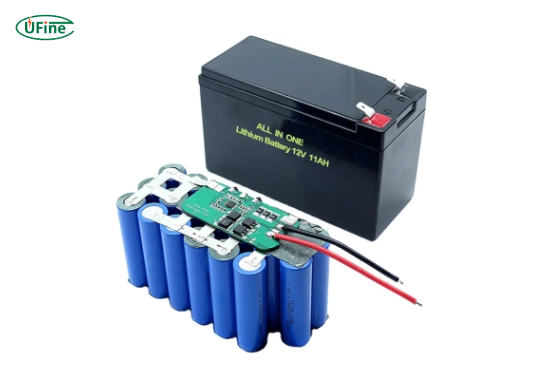

Part 1. What is a 12V 18650 battery pack?

A 12V 18650 battery pack is a power source composed of multiple 18650 lithium-ion cells connected in a series to provide a nominal voltage of 12V. The 18650 cell is a standard-size lithium-ion battery, measuring 18mm in diameter and 65mm in length. These cells are known for their high energy density, which means they can store significant energy for their size and weight.

Understanding the Configuration

To create a 12V battery pack, multiple 18650 cells are connected in series. A typical configuration involves three cells in series (3S) to achieve a voltage close to 11.1V or 10.8V, which is then considered a 12V battery pack. The capacity of the battery pack depends on the capacity of the individual cells and how they are arranged in parallel.

For example, a 3S1P configuration uses three cells in series and one set in parallel. A 3S2P configuration uses three cells in series and two sets in parallel, doubling the capacity.

Key Components

A 12V 18650 battery pack typically includes the following components:

18650 Lithium-Ion Cells: These are the core energy storage units.
Battery Management System (BMS): The BMS is crucial for monitoring and protecting the battery pack. It prevents overcharging, over-discharging, over-current, and short circuits, ensuring safe and efficient operation.
Connectors and Wiring: These facilitate connecting the cells and the external load.
Casing: The casing provides physical protection and helps to dissipate heat. It can be made of PVC or plastic, depending on the application.

Part 2. Benefits of using 12V 18650 battery packs

Why choose a 12V 18650 battery pack? Here are some compelling advantages:

High Energy Density: 18650 lithium-ion cells pack a lot of power into a small size, making them ideal for portable devices and applications with limited space.
Long Cycle Life: Unlike traditional lead-acid batteries, lithium-ion batteries can last thousands of charge-discharge cycles, providing reliable performance over a more extended period.
Low Self-Discharge Rate: These battery packs hold their charge for extended periods when not in use, making them suitable for emergency backup systems and remote monitoring devices.
Lightweight and Portable Design: The compact size and lightweight nature of 12V lithium-ion battery packs make them easy to handle, transport, and maintain.
Fast and Efficient Charging: Lithium-ion batteries can be charged quickly due to their low internal resistance and advanced charging technologies. The built-in BMS regulates the charging process to ensure safety and efficiency.
Versatility: 12V 18650 battery packs can be used in various applications, from electric vehicles to portable electronics.

Part 3. Applications of 12V 18650 battery packs

The versatility of 12V 18650 battery packs is evident in their broad applications across various sectors. Here are some key areas where these battery packs are commonly used:

Power Category

Electric Vehicles (EVs): 18650 battery packs provide the power needed for propulsion and extended driving range in electric cars.
Electric Bicycles: E-bikes utilize these battery packs as a lightweight and efficient energy source for longer rides.
New Energy Vehicles: Hybrid and plug-in hybrid vehicles use 18650 battery packs to enhance fuel efficiency and reduce emissions.
RV Power Supply: They are ideal for powering small appliances in recreational vehicles.
Outdoor Camping Power Supply: Providing a portable power source for camping equipment.
Solar Street Lights: Storing energy generated from solar panels for nighttime illumination.

Digital Category

Mobile Phones, Tablets, and Laptops: 12V 18650 battery packs are essential for ensuring portable electronic devices’ long-lasting and reliable operation.
Electric Toys: These battery packs are used in remote-controlled cars, drones, and other toys because of their compact size and high energy density.
MP3/MP4 Players and Headphones: Personal audio devices benefit from the longevity of 18650 battery packs.
Power Banks: Portable chargers equipped with 18650 cells offer a convenient way to recharge smartphones and other gadgets on the go.
Aircraft Models: Remote-controlled airplanes and helicopters use 18650 battery packs to power their electric motors.
Mobile Power Supplies: Various applications, including outdoor activities and emergency backup power sources, utilize 12V 18650 battery packs.
Medical Devices: Powering portable medical equipment requires a reliable energy source.
GPS Trackers: Ensuring long-term operation for tracking devices.
LED Lighting: Providing efficient power for LED lights in various applications.

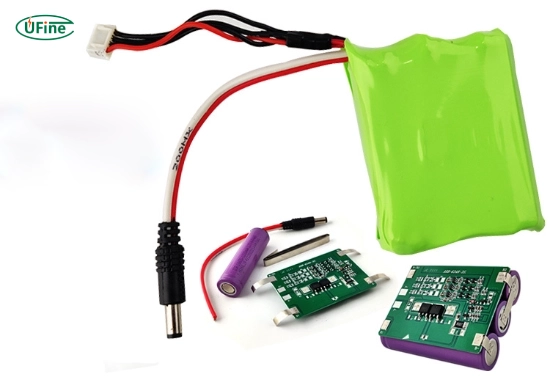

Part 4. Designing your own 12V 18650 battery pack

Creating a custom 12V 18650 battery pack involves several important considerations to ensure safety, efficiency, and reliability. Here’s a step-by-step guide to help you through the process:

Step 1: Determine Your Requirements

Voltage: Ensure the battery pack provides a nominal voltage of 12V. This typically requires a 3S configuration.
Capacity: Calculate the required capacity (mAh or Ah) based on your device’s power consumption and usage duration.
Discharge Rate: Determine the maximum discharge current your application requires. Choose cells and a BMS that can handle this current safely.
Size and Weight: Consider your application’s physical constraints and choose cells and a casing that fits within these limitations.

Step 2: Select the Right 18650 Cells

Brand and Quality: Opt for reputable brands known for high-quality cells. Ufine’s 18650 cells are a great choice.
Capacity and Voltage: Ensure the cells have the desired capacity and a nominal voltage of 3.6V or 3.7V.
Discharge Rating: Select cells with a discharge rating that meets or exceeds your application’s requirements.
Safety Features: Look for cells with built-in safety features such as overcharge, over-discharge, and over-temperature protection.

Step 3: Choose a Battery Management System (BMS)

Voltage and Current Rating: Select a BMS compatible with your battery pack’s voltage and current requirements.
Protection Features: Ensure the BMS provides overcharge, over-discharge, over-current, short circuit, and thermal protection.
Cell Balancing: Choose a BMS with cell balancing capabilities to ensure that all cells in the pack are charged and discharged evenly, maximizing the battery pack’s lifespan and performance.
Communication Interface: Some BMS units have a communication interface (e.g., UART, I2C) that allows you to monitor the battery pack’s status and performance.

Step 4: Assemble the Battery Pack

Connections: Connect the 18650 cells in series to achieve the desired voltage. Use high-quality connectors and wiring to minimize resistance and ensure reliable connections.
Spot Welding: Connect the cells using a spot welder. Spot welding provides a strong and reliable connection without generating excessive heat, which can damage the cells.
Insulation: To prevent short circuits, insulate the connections. Cover exposed wires and connectors with heat shrink tubing or electrical tape.

Step 5: Enclose the Battery Pack

Casing Material: Choose a casing material that provides physical protection and helps to dissipate heat. PVC or plastic casings are commonly used.
Ventilation: Ensure the casing has adequate ventilation to prevent the battery pack from overheating.
Mounting: Design the casing with mounting features that allow you to install the battery pack securely in your application.

Step 6: Test and Validate

Voltage and Current: Measure the voltage and current of the battery pack to ensure they meet your specifications.
Charge and Discharge: Perform charge and discharge tests to evaluate the battery pack’s capacity, discharge rate, and cycle life.
Safety Testing: Test the BMS protection features to ensure they function correctly.

Part 5. 12V 18650 battery pack: safety precautions

Safety is paramount when working with 12V 18650 battery packs. Here are some essential precautions to keep in mind:

Use a BMS: Always use a Battery Management System (BMS) to protect the battery pack from overcharging, over-discharging, over-current, and short circuits.
Proper Handling: Carefully handle the battery pack to avoid physical damage. Do not drop, crush, or puncture the cells.
Avoid Extreme Temperatures: Do not expose the battery pack to extreme temperatures. Store it in a cool, dry place away from direct sunlight and heat sources.
Use the Correct Charger: Only use a charger specifically designed for lithium-ion batteries. Using the wrong charger can damage the battery pack and create a safety hazard.
Monitor the Battery Pack: Regularly monitor its voltage, current, and temperature to ensure it operates within safe limits.
Inspect for Damage: Before each use, inspect the battery pack for any signs of damage, such as swelling, leaks, or corrosion. If you notice any damage, do not use the battery pack; dispose of it properly.
Proper Disposal: Please dispose of the 18650 battery packs that are used correctly. Please do not throw them in the trash; instead, recycle them at a designated recycling center.

Part 6. Maintenance tips for 12V 18650 battery packs

Proper maintenance can significantly extend the life and performance of your 12V 18650 battery pack. Here are some valuable tips:

Regularly Check Voltage: Use a multimeter to check the voltage of the battery pack regularly. A healthy 12V battery pack should have a voltage between 11.1V and 12.6V.
Avoid Deep Discharges: Do not completely discharge the battery pack. Deep discharges can damage the cells and reduce their capacity.
Store Properly: If you are not using the battery pack for an extended period, store it in a cool, dry place at around 50% charge.
Clean Contacts: Keep the contacts clean and free from corrosion. Use a clean cloth or a contact cleaner to remove dirt or corrosion.
Use a Smart Charger: A smart charger automatically adjusts the charging current and voltage to optimize the charging process and prevent overcharging.
Balance Cells Regularly: If your BMS has cell balancing capabilities, use them regularly to ensure that all cells in the pack are charged and discharged evenly.
Inspect Wiring: Inspect the wiring and connections for any signs of damage or wear. Replace any damaged wires or connectors.

Part 7. 12V 18650 battery pack: troubleshooting common issues

Even with proper care and maintenance, you may encounter issues with your 12V 18650 battery pack. Here are some common problems and how to troubleshoot them:

Battery Pack Not Charging:
Check the charger to ensure it is working correctly.
Verify that the charger is compatible with lithium-ion batteries.
Inspect the connections to ensure they are secure and free from corrosion.
Check the BMS to see if it prevents charging due to a fault condition.
Battery Pack Discharging Quickly:
Check the capacity of the cells to ensure they have not degraded over time.
Verify that no excessive loads or short circuits are draining the battery pack.
Inspect the BMS to see if it is malfunctioning and causing excessive discharge.
Battery Pack Overheating:
Check the ventilation to ensure the battery pack is not overheating due to inadequate cooling.
Verify that the discharge rate is within the specified limits of the cells and BMS.
Inspect the cells for any signs of damage or swelling.
BMS Fault Codes:
Consult the BMS documentation to understand the meaning of the fault codes.
Troubleshoot the underlying issues causing the fault conditions.
Replace the BMS if it is malfunctioning.

Part 8. Where to buy 12V 18650 battery packs?

Purchasing a 12V 18650 battery pack requires careful consideration to ensure you get a high-quality, reliable product. Here are some options:

Online Retailers: Websites offer a wide selection of 12V 18650 battery packs from various manufacturers. Ensure you read customer reviews and check the seller’s ratings before purchasing.
Specialty Battery Stores: These stores specialize in batteries and power solutions. They can provide expert advice and help you choose the right battery pack.
Electronics Suppliers: Electronics suppliers carry a range of battery packs and components. They can be a good source for both standard and custom battery packs.
Direct from Manufacturers: Buying directly from manufacturers can ensure you get a high-quality product with full warranty support. However, this option may be more expensive and require larger order quantities. Ufine Battery also provides OEM and ODM services.

Part 9. 12V 18650 battery pack: cost considerations

The cost of a 12V 18650 battery pack can vary widely depending on several factors, including capacity, brand, quality, and features. Here’s a breakdown of the key cost considerations:

Cell Cost: The cost of the 18650 cells is the most significant factor. High-quality cells from reputable brands are more expensive but offer better performance and longevity.
BMS Cost: The cost of the BMS depends on its features and capabilities. More advanced BMS units with cell balancing and communication interfaces are more expensive.
Casing Cost: The cost of the casing depends on the material and design. Custom casings made from high-quality materials are more expensive.
Assembly Cost: If you are not assembling the battery pack, you must factor in the assembly cost. This can vary depending on the complexity of the battery pack and the labor rates.
Shipping Cost: Shipping costs can add to the overall cost, especially if you purchase from an online retailer.

Part 10. 12V 18650 battery pack: regulations and standards

Understanding the regulations and standards related to 12V 18650 battery packs is crucial for ensuring safety and compliance. Here are some key rules and standards to be aware of:

UN 38.3: This standard specifies the testing requirements for lithium batteries to ensure they are safe for transportation.
IEC 62133: This standard specifies the safety requirements for portable sealed secondary lithium cells and batteries.
UL 1642: This standard covers the safety of lithium batteries used in various applications.
RoHS: This directive restricts hazardous substances in electrical and electronic equipment.
CE Marking: This marking indicates that a product meets the health, safety, and environmental protection standards for products sold within the European Economic Area.

Part 11. FAQs About 12V 18650 Battery Packs

What is the typical lifespan of a 12V 18650 battery pack?

Depending on usage and storage conditions, a well-maintained 12V 18650 battery pack can last 300-500 cycles or 2-3 years. Proper care can extend its lifespan by avoiding deep discharges and storing the battery in a cool, dry place.

Can I replace the 18650 cells in my battery pack?

Yes, but it requires technical expertise and caution. Replacing the cells involves disassembling the battery pack, disconnecting the old cells, and connecting new ones. It’s crucial to ensure the new cells have the exact specifications and quality as the original ones to maintain the battery pack’s performance and safety.

What is a BMS, and why is it important?

A Battery Management System (BMS) is an electronic system that manages and protects the battery pack from overcharging, over-discharging, over-current, short circuits, and thermal runaway. It ensures the safe and efficient operation of the battery pack, extending its lifespan and preventing potential hazards.

How do I choose the correct charger for my 12V 18650 battery pack?

Select a charger specifically designed for lithium-ion batteries that match your battery pack’s voltage and current requirements. Using the wrong charger can damage the battery pack and create a safety hazard. Look for chargers with safety features such as overcharge protection and automatic shut-off.

Are 12V 18650 battery packs environmentally friendly?

12V 18650 battery packs are more environmentally friendly than traditional lead-acid batteries due to their longer lifespan and lack of toxic materials like lead. However, to prevent environmental contamination, they must be disposed of properly by recycling them at designated recycling centers.
