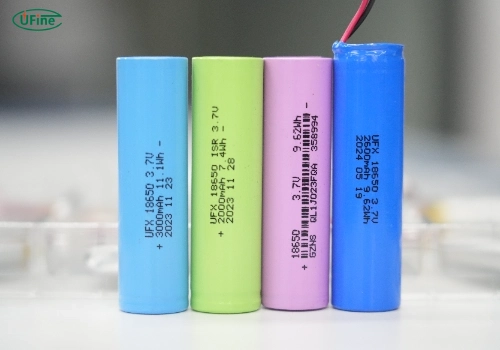

The Ultimate Guide to 18650 Button Top Battery

By Henry, Updated on July 26, 2024

Share the page to

18650 button top batteries are popular for various electronic devices due to their high energy density, reliability, and rechargeability. This comprehensive guide will delve into everything you need to know about these batteries, from their essential characteristics to best practices for usage and maintenance.

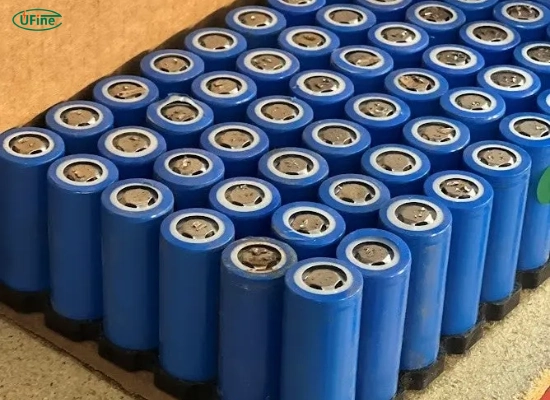

Part 1. What is an 18650 button top battery?

An 18650 button-top battery is a type of lithium-ion rechargeable battery. The name “18650” refers to its dimensions: 18mm in diameter and 65mm in length. The “button-top” designation indicates that the battery’s positive terminal has a small raised button, distinguishing it from the flat-top version, which has a flat positive terminal.

Critical features of 18650 button top batteries

18650 button top batteries are known for several key features:

High capacity: These batteries typically range from 1200mAh to 3600mAh, allowing for extended usage.
High discharge rates: They can deliver high currents, making them suitable for high-drain devices like flashlights and power tools.
Rechargeability: They can recharge hundreds of times, making them a cost-effective and environmentally friendly option.
Safety features: Many 18650 button-top batteries have built-in protection circuits to prevent overcharging, over-discharging, and short-circuiting.

Applications of 18650 button top batteries

18650 button-top batteries are versatile and used in a wide range of applications:

Flashlights: Their high discharge rates make them ideal for high-powered flashlights.
Power tools: They provide the necessary power for cordless drills and other tools.
Laptops: Many laptop battery packs use 18650 cells.
Electric vehicles: Some electric cars use 18650 cells in battery packs due to their high energy density.

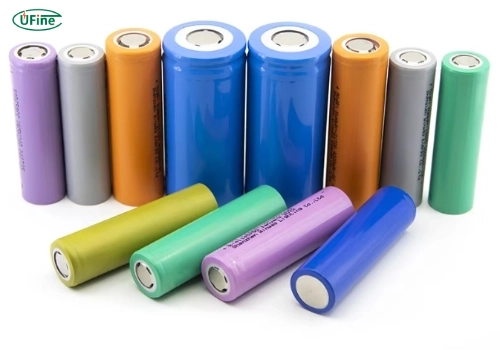

Part 2. Differences between flat top and button top 18650 batteries

The primary difference between flat-top and button-top 18650 batteries lies in the design of the positive terminal. Flat-top batteries have a flat positive terminal, while button-top batteries have a raised button. This difference in design can affect compatibility with specific devices.

Devices requiring a secure connection, such as flashlights and electronic gadgets, often use button-top batteries.

Here are the key differences in the manufacturing process of flat top and button top 18650 batteries:

1. Original manufacturing:

Primary manufacturers produce 18650 batteries with flat tops.
A flat top is the standard design that comes directly from battery manufacturers.

2. Button top addition:

Button tops are typically added later by resellers or secondary manufacturers, not by the original battery makers.
Companies like KeepPower or Efest add button top to flat-top cells.

3. Attachment process:

The button top is attached separately to the flat top battery.
This involves adding a small raised metal button to the positive terminal.

4. Design considerations:

Manufacturers design flat tops to be more compact and fit into tight battery compartments.
Manufacturers design button tops to ensure contact in devices with recessed or limited battery compartments.

5. Safety features:

Some flat-top batteries may add outer layers or coatings to protect against overheating.
Button tops can serve as an additional safety feature in some devices.

6. Compatibility focus:

Manufacturers focus on compatibility with built-in battery packs and devices with spring-loaded contacts when creating flat tops.
Button tops are added with consumer devices in mind that require a protruding positive terminal.

18650 Battery Flat Top vs. Button Top: What is Different?

Part 3. How do you charge 18650 button top batteries?

Charging 18650 button top batteries requires a dedicated lithium-ion battery charger. Here are some tips for charging:

Use the correct charger: Ensure the charger is designed for 18650 batteries and provides the proper voltage (typically 4.2V).
Monitor the charging process: Avoid overcharging by unplugging the battery once fully charged.
Avoid extreme temperatures: Charge the batteries at room temperature to prevent damage.

Part 4. Safety precautions for using 18650 button top batteries

Safety is paramount when using 18650 button-top batteries. Follow these precautions:

Avoid overcharging and over-discharging: Use a charger with overcharge protection and avoid draining the battery completely.
Store properly: Keep batteries in a cool, dry place and avoid exposure to extreme temperatures.
Inspect regularly: Check for any signs of damage, such as swelling or leakage, and replace damaged batteries immediately.

Part 5. How can the life of an 18650 button top battery be prolonged?

To maximize the lifespan of your 18650 button top battery, follow these tips:

Avoid deep discharges: Recharge the battery before it exceeds 20% capacity.
Use partial charges: Charging the battery to around 80% can help extend its lifespan.
Store at partial charge: If you plan to store the battery for an extended period, keep it at around 50%.

Part 6. Common issues with 18650 button top batteries and solutions

Here are some common issues and their solutions:

Battery not holding charge: This could be due to aging or damage. Consider replacing the battery.
Overheating: Ensure proper ventilation and avoid using the battery in high-temperature environments.
Swelling: This is a sign of internal damage. Please stop using the battery immediately and dispose of it properly.

Part 7. How can 18650 button top batteries be safely disposed of?

Proper disposal of 18650 button top batteries is crucial to prevent environmental harm:

Recycling centers: Take the batteries to a designated or hazardous waste collection site.
Retail drop-off: Many electronics stores offer battery recycling programs.

Part 8. FAQs

What is the typical lifespan of an 18650 button top battery?

The lifespan of an 18650 button top battery typically ranges from 300 to 500 charge cycles, depending on usage and maintenance.
Can I use a flat-top battery in place of a button-top battery?

It depends on the device. Some devices require a raised button for a secure connection, while others can accommodate either type.
How is my 18650 button top battery fully charged?

Most chargers have an indicator light that turns green or off when the battery reaches full charge. You can also use a multimeter to check the voltage, which should be around 4.2V when fully charged.
What should I do if my 18650 button top battery gets hot during use?

If the battery becomes hot, stop using it immediately and let it cool down. Overheating can indicate overuse or a damaged battery, which can be dangerous.
Can I store 18650 button-top batteries in the refrigerator?

Experts do not recommend storing lithium-ion batteries in the refrigerator. Instead, you should store them at room temperature in a cool, dry place.
