Understanding Li Polymer Battery Pack

By Ufine, Updated on February 17, 2025

Share the page to

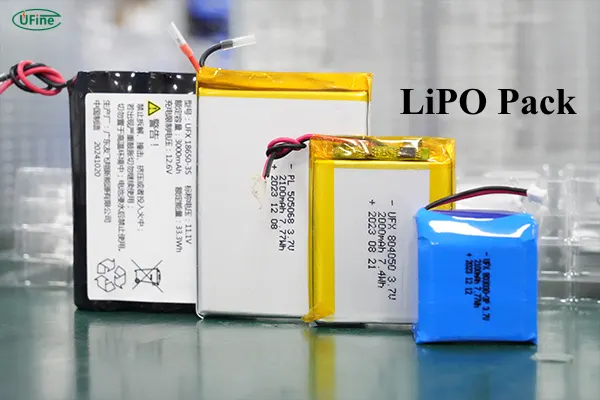

Part 1. Li polymer battery pack: basic components and architecture

At its core, a LiPo battery pack is composed of several interconnected units that work together to deliver reliable power. The key components are:

Lithium Polymer Cells: The most crucial element, these cells consist of a gel or solid polymer electrolyte, giving LiPo batteries their lightweight and flexible design. These cells offer high energy density, essential for applications that require a lightweight battery with high power output.
Battery Management System (BMS): The BMS is indispensable for safe operation, overseeing the charge-discharge cycles, cell balancing, and temperature regulation. Without it, the battery is prone to overcharge or deep discharge, which could lead to performance degradation or, in extreme cases, catastrophic failure.
Protection Circuit Module (PCM): This ensures voltage regulation, preventing overcharging and over-discharging of the individual cells within the pack, further enhancing battery longevity and safety.
Connectors and Housing: The battery pack includes electrical connectors to integrate the cells into the system and an external housing to provide structural integrity and thermal protection.

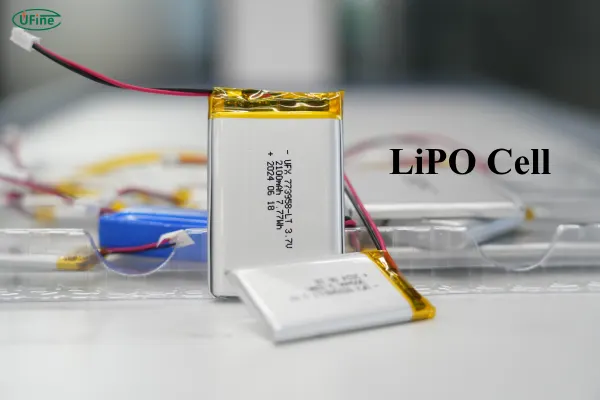

Part 2. Understanding li polymer cell

LiPo cells differ from Li-ion cells mainly in their construction and electrolyte form. LiPo cells use a solid or gel-like polymer electrolyte, which provides:

Higher flexibility: LiPo batteries can be made in any shape, including thin, flexible designs ideal for compact spaces.
Enhanced energy density: Despite being lightweight, LiPo batteries offer high discharge rates and good storage capacity, essential for high-power applications like drones or electric vehicles (EVs).

The Latest Industry Trends:

Recent advancements in LiPo cell technology have led to the development of longer-lasting, high-energy density cells that can operate at higher discharge rates without significant degradation. For instance, research from the University of California (2023) showed that LiPo cells with advanced solid-state electrolytes can provide 20-30% longer cycles while maintaining energy efficiency. This opens up new possibilities for high-performance EV batteries and renewable energy storage systems.

Part 3. Li polymer vs. li-ion: in-depth comparison

While both LiPo and Li-ion (Lithium-ion) batteries are lithium-based technologies, they differ in fundamental ways:

Electrolyte Composition: LiPo batteries use gel or polymer electrolytes, which allows for more flexible battery forms. Li-ion batteries, by contrast, use liquid electrolytes and are typically more rigid in design.
Performance: Li-ion batteries have a higher energy density compared to LiPo batteries, making them more suitable for applications where high energy density and longer runtime are required (e.g., electric vehicles).
Safety: LiPo batteries are more prone to swelling or leaking if overcharged or exposed to extreme conditions due to their soft casing. Li-ion batteries, while safer in some aspects, can still suffer from thermal runaway if improperly handled.

The market for LiPo batteries is expected to grow at a CAGR of 9.5% between 2023 and 2030, primarily driven by the consumer electronics sector and drone technology.

Part 4. What do “S” and “P” mean on a lipo battery pack?

When looking at a LiPo battery pack, you’ll encounter S and P notations. These refer to how cells are configured:

S (Series): Indicates how many cells are connected in series to achieve the desired voltage. For example, a 3S LiPo pack means three cells connected in series to provide a nominal voltage of 11.1V (3.7V per cell).
P (Parallel): Indicates how many cells are connected in parallel to increase capacity (mAh or Ah). For instance, a 2P configuration means two cells in parallel, which doubles the battery’s capacity without changing the voltage.

The combination of series and parallel configurations in LiPo packs allows for customization to meet specific voltage and capacity needs.

Part 5. Why li polymer batteries need to be packed together?

LiPo cells are typically packaged in configurations (multiple cells in series and/or parallel) to meet the required voltage and capacity needs of the end application. Battery packs offer several advantages:

Scalability: A single cell can only provide a limited voltage and capacity. By connecting multiple cells, you can easily scale the pack to meet high-power demands for electric vehicles, solar storage systems, and other applications.
Protection: A battery pack with a Battery Management System (BMS) ensures that the pack’s cells operate in safe ranges, with individual cells monitored for voltage balance and temperature control.

How to Connect Lithium Batteries in Series and Parallel?

Part 6. Consistency of lipo battery packs

Ensuring consistency across cells in a battery pack is vital for maximizing performance and extending lifespan:

Matching Cells: Cells within the pack must have similar voltage, capacity, and internal resistance. Even slight mismatches can lead to imbalanced charge/discharge cycles, reducing efficiency and lifespan.
Battery Management Systems (BMS): A BMS helps to keep cells balanced by actively monitoring and adjusting their voltage, ensuring that the pack remains consistent and performs at its best.

Part 7. Key parameters of the best li polymer battery pack

When choosing the best LiPo battery pack, the following key parameters should be considered:

Voltage (V): Ensure the pack meets your voltage requirements (e.g., 12V, 24V, 48V).
Capacity (mAh or Ah): Capacity defines the runtime of your device. Higher capacity batteries offer longer operational times but can also be heavier and bulkier.
Energy Density (Wh/kg): The amount of energy the pack can store relative to its weight and size. High energy density is crucial for applications where space and weight are limited.
Discharge Rate (C-rate): Determines how quickly the battery can release energy. A higher C-rate is critical for high-power applications like RC models or electric vehicles.
Cycle Life: LiPo packs generally have 300-500 charge/discharge cycles, but advancements in solid-state electrolytes are extending the cycle life significantly.
Temperature Range: LiPo batteries operate best in a temperature range of 0°C to 45°C. Operating outside this range can cause irreversible damage to the cells.

Part 8. How to charge a li polymer battery pack safely?

Charging a LiPo battery pack requires careful attention to avoid damage or risk:

Use a LiPo-compatible charger: These chargers are specifically designed to handle LiPo cells and ensure voltage regulation.
Never overcharge: The voltage per cell should not exceed 4.2V. Overcharging can cause thermal runaway, potentially leading to fire or explosions.
Charge in a fireproof bag: Always charge LiPo batteries in a fireproof bag to prevent any safety risks in case of a malfunction.

Part 9. Custom li polymer battery packs by Ufine Battery

At Ufine Battery, we specialize in the design and manufacture of custom LiPo battery packs tailored to your specific needs. Whether you need a compact design for portable electronics, or a large-capacity pack for solar energy storage, our team is equipped to deliver precise solutions.

Contact Ufine Battery today to discuss your requirements, and we’ll create the perfect LiPo battery pack for your device.
