Understanding the Versatility of Battery Packs

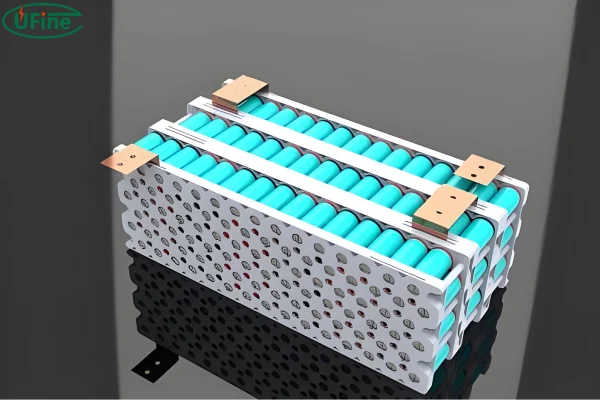

Part 1. What is a battery pack?

A battery pack is essentially a collection of batteries designed to power various devices and applications. These packs are more than just a bunch of batteries thrown together; they are meticulously engineered to provide a reliable and consistent power source. Here’s a closer look at what makes a battery pack tick:

Components of a Battery Pack

• Cells: The actual batteries. These can be any type, such as lithium-ion, nickel-metal hydride, or lead-acid.
• Battery Management System (BMS): This is the brain of the battery pack. It monitors the state of the batteries to optimize performance and ensure safety.
• Connectors: To link the batteries together. They maintain the electrical flow and balance the load across all cells.
• Housing/Casing: This protects the internal components from physical damage and environmental factors.

How Battery Packs Work

Battery packs work by connecting multiple individual cells in series or parallel to increase voltage or capacity.

• Series Configuration: When cells are connected in series, the voltage of each cell adds up. For example, three 3.7V cells will provide 11.1V.
• Parallel Configuration: When cells are connected in parallel, the total capacity increases while the voltage stays the same. Two 2000mAh cells in parallel would give you 4000mAh total capacity at the same voltage.

Uses of Battery Packs

Battery packs are everywhere and power many of the devices we rely on daily.

• Portable Electronics: Think laptops, smartphones, and tablets.
• Electric Vehicles: Battery packs provide the power for electric cars, bikes, and scooters.
• Renewable Energy Systems: Solar power installations often use battery packs to store energy collected during the day.
• Backup Power Supplies: Uninterruptible power supplies (UPS) use battery packs to ensure that devices can continue operating during a power outage.

Why Choose a Battery Pack?

They offer various benefits that make them an attractive option for different applications.

• Efficiency: They can deliver high energy efficiently.
• Versatility: Suitable for various devices and scalable based on needs.
• Convenience: Easy to replace and maintain.

Understanding battery packs, their components, and how they work provides valuable insights into how so many of our modern conveniences are powered.

Part 2. Battery cell, battery module, battery pack

When diving into the world of battery technology, it’s essential to understand the different components that make up a battery pack. These components are the building blocks that determine the efficiency, durability, and performance of the batteries we rely on every day. Let’s break it down one step at a time.

How to Distinguish Battery Cells, Battery Modules, And Battery Packs?

Battery Cell

A battery cell is the smallest, most basic unit of a battery. Imagine a single AAA battery you might put in your remote control; that’s essentially a battery cell. Each cell typically consists of:

• Electrodes: Anode and cathode materials where chemical reactions happen.
• Electrolyte: A medium allowing ions to move between electrodes.
• Separator: A barrier preventing the electrodes from touching but letting ions pass through.

Cells come in various shapes and sizes, including cylindrical, prismatic, and pouch forms. They can differ in chemistry too, such as lithium-ion or nickel-metal hydride.

Battery Module

Battery modules are the next level up. They are collections of battery cells assembled together to act as a single entity. Think of a module as a multi-pack of AA batteries connected in series or parallel to amplify voltage or capacity. Key features of battery modules include:

• Housing: Protects the cells and keeps them in place.
• Control Circuits: Manages temperature, voltage, and state of charge.
• Interconnects: Connect cells to ensure they work seamlessly together.

Modules are designed to balance the load and extend the life of individual cells by ensuring optimal performance.

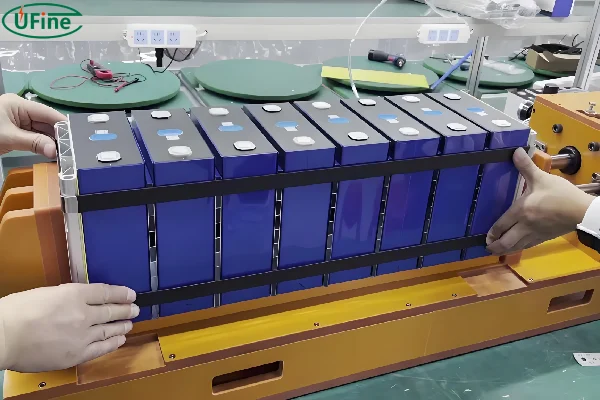

Battery Pack

Finally, the battery pack is the top-tier component incorporating multiple battery modules. It’s the ultimate package, ready to power larger devices such as electric cars, smartphones, or even renewable energy systems. A solid battery pack typically consists of:

• Enclosure: Ensures safety and shields from external factors like heat and vibration.
• Battery Management System (BMS): Sophisticated electronics that control everything from charging to discharging, ensuring safety and efficiency.
• Cooling Mechanisms: Prevents overheating and maintains optimal operating temperatures.

Battery packs are designed for specific applications and come in various configurations to match the needs of different devices and systems.

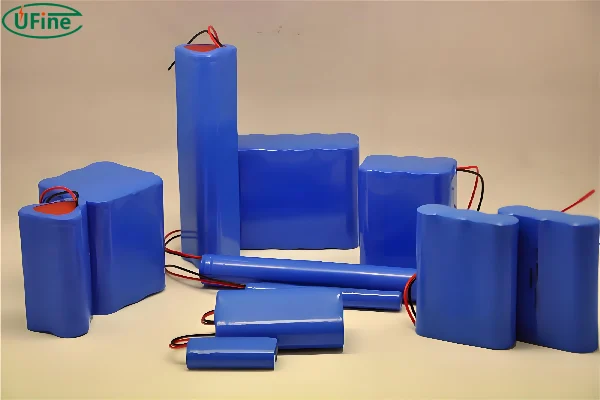

Part 3. Battery pack types

Battery packs come in many types, each suited to different needs and applications. Whether it’s for a smartphone, electric vehicle, or a portable speaker, picking the right type can make a world of difference.

Lithium-Ion (Li-Ion)

• Common Uses: Smartphones, laptops, cameras
• Pros: Lightweight, high energy density, low self-discharge rate
• Cons: Sensitive to overcharging, expensive

Nickel-Cadmium (NiCd)

• Common Uses: Power tools, medical devices
• Pros: Robust, good performance in extreme temperatures, longer cycle life
• Cons: Memory effect, toxic metals, low energy density

Nickel-Metal Hydride (NiMH)

• Common Uses: Hybrid vehicles, AA/AAA batteries for consumer electronics
• Pros: Less prone to memory effect than NiCd, higher capacity
• Cons: Self-discharges quickly, can overheat

Lead Acid

• Common Uses: Car batteries, backup power systems
• Pros: Highly reliable, inexpensive, good for high-power applications
• Cons: Heavy, low energy density, needs regular maintenance

Lithium Polymer (Li-Po)

• Common Uses: RC hobbies, smartphones, tablets
• Pros: Lightweight, flexible shapes, high energy density
• Cons: Expensive, sensitive to punctures

Alkaline

• Common Uses: Remote controls, clocks, flashlights
• Pros: Long shelf life, readily available, inexpensive
• Cons: Not rechargeable, lower energy output

A specific battery type for a specific gadget isn’t just about compatibility; it’s about performance, lifespan, and practicality. Each type has unique advantages along with its drawbacks.

Carrying the right battery pack determines not just how long a gadget will run, but how well it responds under various conditions. For instance, overheated NiMH batteries in a high-energy environment could compromise efficiency or cause safety issues.

Applications Matter

Different devices demand different battery types:

• Automotive: Strong preference toward lead-acid and NiMH.
• Consumer Electronics: Lean heavily on Li-Ion and Li-Po.
• Heavy Machinery: Depend more on NiCd and lead-acid.

Consider your device, usage scenarios, and longevity expectations before settling on a battery pack type. It’s all about balancing benefits with the specific needs at hand.

Part 4. A detailed look at battery pack parameters and performance

Battery packs come with a variety of different parameters that can impact their performance. Being aware of these can help make informed decisions.

Capacity and Energy Density:

• Capacity: Usually measured in ampere-hours (Ah). Larger capacity means more power storage.
• Energy Density: This is the amount of energy stored per unit volume. High energy density packs are lighter but can cost more.

Voltage:

• Nominal Voltage: This is the default working voltage. Common values are 3.7V for lithium-ion cells.
• Cutoff Voltage: The minimum voltage before the battery needs to be recharged.

Discharge Rate:

• Expressed in C-ratings, where ‘C’ stands for capacity.
• A 1C discharge rate means a battery with 1Ah capacity delivers 1A of current for one hour. Higher C-ratings mean the battery can discharge faster without damage.

Charge Rate:

• Also indicated by a C-rating.
• Most batteries can charge at a 0.5C rate safely. Fast charging at higher rates can reduce the lifespan.

Cycle Life:

• Refers to the number of full charge-discharge cycles a battery can go through before its capacity falls below 80% of the original.
• Typical consumer batteries have 300-500 cycles.

Temperature Range:

• Performance can degrade if operated outside the recommended temperature range.
• Some batteries come with built-in mechanisms to manage temperature.

Internal Resistance:

• Lower internal resistance = better performance under high loads.
• Effects: Higher resistance may lead to overheating and energy loss.

Safety Features:

• Most modern battery packs come with integrated safeguards like overcharge, over-discharge, and short-circuit protection.

Weight and Size:

• Important in applications where space and weight are critical.
• You need to balance between capacity and physical constraints.

Manufacturer Specifications:

• Always refer to the manufacturer’s datasheet for detailed performance metrics.
• Variations exist between different brands and models.

Understanding these parameters can eliminate frustrations related to battery performance and longevity, ensuring optimal use.

Part 5. What type of battery pack should I buy?

When you’re in the market for a new battery pack, there’s a lot to think about. Knowing what you need can save time and money. Here’s a quick guide to help decide:

1. Capacity and Size

Deciding on the right capacity is key. Battery capacity is measured in mAh (milliamp-hours) or Wh (watt-hours). Consider:

• mAh: For smaller devices like phones or tablets, a pack with 10,000 to 20,000 mAh should do.
• Wh: For larger equipment like laptops or cameras, aim for something with higher watt-hours.

2. Type of Devices

Tailoring the battery pack to the kind of devices you use is crucial.

• Phones/Tablets: Look for USB-A and USB-C ports.
• Laptops: Ensure there’s a PD (Power Delivery) port.
• Cameras: Check for specific compatibility.

3. Portability

Portability can vary widely based on the size and weight of the battery pack.

• Daily Commuters: Smaller, lighter packs that fit easily in a bag.
• Travelers/Campers: Bigger packs that can handle more devices and last longer between charges.

4. Charging Speed

No one likes to wait forever for their devices to charge. The output rating determines speed.

• Fast Charging: Aim for packs with higher wattage and fast-charge capabilities.
• Standard Charging: Acceptable if you’re not in a rush.

5. Durability and Build

Durability matters, especially if you travel a lot. Look for:

• Rugged Build: Packs with protective casing.
• Water Resistance: For those who go on outdoor adventures.

6. Brand Reputation and Reviews

It’s smart to go with brands known for quality and read user reviews.

• Top Brands: Anker, RavPower, and Mophie.
• Reviews: Check ratings and specific pros and cons mentioned by other customers.

7. Additional Features

Some extra features can make a big difference.

• Solar Charging: Great for outdoor enthusiasts.
• LED Flashlight: Handy in emergencies.
• Multi-device Charging: For those with lots of gadgets.

8. Price

Budget always plays a role. Balance price with the features and capacity needed.

• Budget Options: Usually offer less capacity.
• Premium Models: Often sport extra features and higher durability.

9. Warranty and Customer Support

Having good after-sales service can be a life-saver.

• Warranty: Look for at least a one-year warranty.
• Support: Read up on the company’s customer service track record.

By focusing on what matters most—capacity, device compatibility, portability, charging speed, durability, brand, reviews, features, price, and warranty—choosing the right battery pack becomes a whole lot easier.

Part 6. Key features of the lithium battery pack

Lithium battery packs are pretty cool because they have a bunch of features that make them versatile and user-friendly. Let’s dive into what makes these powerhouses stand out:

Lightweight and Compact

• Portability: Ideal for portable devices, lithium battery packs are incredibly light, making them easy to carry.
• Space-Saving: Their compact size means they take up less room, whether installed in gadgets or carried around.

High Energy Density

• Power-Packed: They store a lot of energy in a small volume, perfect for high-drain devices.
• Longevity: Longer use before needing a recharge, which is fantastic for busy folks on the go.

Fast Charging

• Time-Efficient: They charge faster than many other types of batteries, saving valuable time.
• Convenient: Less wait time means more uptime for your devices.

Low Self-Discharge

• Reliable Storage: Keeps charge for longer periods when not in use.
• Readiness: Always ready to go when needed without constant recharging.

Long Cycle Life

• Durability: They last through many charge-discharge cycles, which means a longer lifespan.
• Cost-Effective: Reduces the need for frequent replacements, saving money in the long run.

Safety Features

• Built-In Protections: Include overcharge, over-discharge, and short circuit protection.
• Peace of Mind: Users can feel safe with these automatic safety checks.

Environmental Impact

• Eco-Friendly: Generally easier to recycle compared to other battery types.
• Less Waste: Fewer replacements mean less waste over time.

Performance Versatility

• Wide Temperature Range: Operates efficiently across various temperatures.
• Consistent Output: Provides steady power output, ensuring device performance.

Design Adaptability

• Customizable: Can be tailored for specific applications or devices.
• Innovative: Paves the way for new and improved device designs.

Everyone from tech enthusiasts to average consumers can see the huge benefits of using lithium battery packs, thanks to these stellar features.

Part 7. Lithium battery pack price

When it comes to battery packs, the lithium variety often steals the spotlight. Here’s a quick dive into why they might just be worth every penny.

Factors Influencing the Price

1. Capacity: Higher capacity packs cost more.
2. Brand: Some brands charge a premium.
3. Features: Packs with smart features like built-in gauges or Bluetooth.
4. Market Demand: Prices can fluctuate with demand, such as during peak seasons.
5. Raw Materials: Costs of lithium and other materials affect pricing.

Average Price Range

• Small Packs (under 1kWh): Generally between $100 to $500.
• Medium Packs (1-3kWh): Typically range from $400 to $1500.
• Large Packs (above 3kWh): Can start at $1,000 and soar upwards of $5,000.

Why Pay More?

Lithium battery packs are often more expensive than their lead-acid or nickel-cadmium counterparts. But here’s why many find the extra cost justified:

• Longevity: Higher cycle life means they last longer.
• Efficiency: Better energy density means more power in a smaller size.
• Weight: They’re lighter, making them ideal for portable applications.
• Eco-Friendliness: Less toxic to the environment upon disposal.

What to Look For

When shopping, don’t just focus on the price tag. Instead, consider:

• Warranty: A longer warranty can save money in the long run.
• Customer Reviews: These can provide real-world insights.
• Compatibility: Ensure the pack fits your specific needs and devices.

Real-World Examples

• Tesla Powerwall: A high-capacity option, great for home energy storage but comes with a hefty price.
• Jackery Explorer: Popular for portable use like camping, offers a balance of price and performance.
• DIY Solutions: Some opt to build their own packs using 18650 cells, which can be cost-effective but requires skill and safety precautions.

In sum, while lithium battery packs can be a significant investment initially, their benefits often make them worth it. Choices abound, catering to various needs and budgets.

Part 8. Tips for maximizing battery pack lifespan

Ensuring a long-lasting battery pack starts with adopting some good habits. Here are a few practical tips:

1. Regular Charging

   • Avoid letting the battery drop to zero percent. Aim for recharging it when it hits around 20-30%.
   • Overcharging is also something to avoid. Once it reaches 100%, unplug it.

2. Temperature Control

   • Keep battery packs away from extreme temperatures. Ideal storage temperatures are between 32°F and 77°F.
   • Direct sunlight can heat them up quickly, so storing them in a shaded area is recommended.

3. Proper Storage

   • If you’re not going to use the battery pack for a while, store it at around 50% charge.
   • Use the original casing or an insulated container to provide extra protection.

4. Avoid Complete Discharge

   • Regularly cycling between a full charge and a complete drain can degrade the battery faster.
   • Stick to partial discharges and recharges.

5. Use the Right Charger

   • Make sure to use the manufacturer-recommended charger for the battery pack.
   • Cheap, off-brand chargers can damage the battery by sending it inconsistent charge levels.

6. Periodic Calibration

   • Calibrating the battery every few months can help maintain its accuracy in displaying charge levels.
   • Fully charge the battery and then let it drain down to zero, and repeat.

7. Regular Maintenance

   • Clean the battery terminals with a soft cloth to ensure strong connectivity.
   • Visually inspect for any signs of damage or swelling.

8. Software Updates

   • Keep the firmware of the devices using these battery packs updated. Manufacturers often provide updates optimizing battery usage.

9. Avoid Overuse of Intensive Functions

   • Minimize the use of intensive apps or functions that drain the battery quickly.
   • Features like high-brightness settings or extensive audio can be a big drain.

10. Use Battery Saver Modes

    • When the battery is running low, switch to battery saver mode.
    • This can extend the remaining battery life until the next recharge.

Gerald

Electronic Engineering Writer

More Articles

10 Tips for Maximizing the Life of Drill battery

Want your drill battery to last longer? Check out these easy tips for caring for it. Keep it strong and get more work done every day!

Understanding Slimline Lithium Batteries for Beginners

Used Lithium Batteries: What You Need to Know Before Buying or Disposing

Before you buy or toss used lithium batteries, discover key facts for safety and performance. Get the knowledge you need now!

Maximize Efficiency with Slim Lithium Batteries: A Comprehensive Guide

Want to improve your device's performance? Check out our guide to slim lithium batteries and see how they can maximize your energy usage effectively!

Save Lithium Battery Power: 15 Tips You Can Use

Want to stretch your lithium battery life? Discover easy tips that can help you save power and keep your devices running longer. Check it out now!
