What are Watts and Watt Hours in Battery?

By Ufine, Updated on March 1, 2024

Share the page to

Understanding the difference between watt and watt-hour is critical to choosing the correct battery. While watts (W) measure power speed, watt-hours (Wh) track energy capacity. This guide’ll break down their definitions, differences, and practical applications, with a clear comparison table and step-by-step calculations to help you master battery performance metrics.

Part 1. What is a watt-hour in battery?

A battery’s watt-hour (Wh) measures the total energy it can store and provide. It indicates how much power the battery can deliver over a certain period. For instance, if a battery has a capacity of 100 watts, it can supply 100 watts of power for one hour, 50 watts for two hours, and so on.

The watt-hour rating helps users understand how long a battery can power their devices before needing recharging. It’s an essential metric for choosing the correct battery for different applications, like smartphones, laptops, or electric vehicles, ensuring they can operate for the required duration without running out of power.

Part 2. What are watts in battery?

Watts in a battery refers to the rate at which it delivers power. It measures the amount of energy transferred per unit of time. For example, if a battery provides 50 watts of power, it can deliver 50 joules of energy per second.

Understanding watts is crucial because it indicates how quickly a battery can supply power to a device. Higher-wattage batteries can charge devices faster or support devices with higher power requirements. This metric is crucial when selecting a battery for specific applications, ensuring compatibility and optimal performance.

Part 3. What is the difference between watts and watt-hours in battery?

Watts measures the power consumption or generation rate at a specific moment.

Watt-hours, however, quantify the total energy consumed or stored over time.

Watts indicate how fast energy is being used or produced, while watt-hours express the total energy capacity over time.

Watts are analogous to speed, indicating how quickly energy is being used. At the same time, watt-hours are akin to distance, representing the total energy consumed over a specific duration.

Understanding this disparity is crucial for evaluating batteries and devices’ power requirements and endurance.

For instance, a light bulb may consume 60 watts of power. Still, its energy consumption over an hour would be 60 watt-hours if it remains continuously lit.

In contrast, a device that consumes 10 watts but operates for 6 hours would use 60 watts of energy.

Thus, while watts assess instantaneous power needs, watt-hours provide insights into overall energy usage and storage capabilities.

Watt vs Watt Hour: Quick Comparison Table

Metric	Watt (W)	Watt-Hour (Wh)
Definition	Power rate (energy per second)	Total energy capacity
Analogy	Speed (e.g., mph)	Distance (e.g., miles)
Formula	Volts × Amps	Volts × Amp-Hours
Key Use	Device power requirements	Battery runtime estimation

Part 4. Why understanding watt vs watt hour matters

Choosing the right battery requires balancing power (watts) and energy (watt-hours). Here’s why:

Avoid Overloads: High-watt devices (e.g., power tools) need batteries with sufficient watt output.
Predict Runtime: Watt-hours tell you how long a 100Wh battery can run a 50W device (2 hours).
Compare Batteries: Under the same load, a 12V 5Ah battery (60Wh) lasts longer than a 10V 5Ah (50Wh).

Part 5. How to calculate the watt hours of a battery?

Calculating the watt-hours of a battery involves a straightforward formula based on the battery’s voltage and capacity:

Step-by-Step Guide

Determine Battery Voltage:

Identify the battery’s nominal voltage, typically expressed in volts (V). The manufacturer usually provides this information.

Find Battery Capacity:

Locate the battery’s rated capacity, often listed in ampere-hours (Ah) or milliampere-hours (mAh). This figure indicates the total charge the battery can store.

Convert Ampere-Hours to Watt-Hours (optional):

If the battery capacity is given in ampere-hours, convert it to watt-hours by multiplying by the voltage. The formula is:

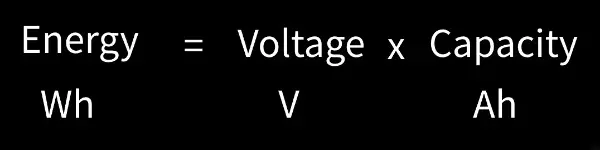

Watt-hours (Wh)=Voltage (V)×Capacity (Ah)

Example:

For instance, if you have a 12-volt battery with a capacity of 5 ampere-hours, the calculation would be:

Watt-hours (Wh)=12 V×5 Ah=60 Wh

Important Notes:

Use the same unit for voltage and capacity (e.g., volts and ampere-hours).

The nominal voltage may vary depending on the battery type (e.g., lead-acid, lithium-ion).

Capacity may diminish over time and with usage, so the calculated watt-hours may differ from the actual performance of older batteries.

This calculation estimates the battery’s energy storage capacity, helping users understand its endurance and suitability for specific applications.

By following these steps, users can accurately calculate a battery’s watt-hours, facilitating informed decisions regarding power requirements and usage.

Pro Tip: Always convert to watt-hours to compare batteries with different voltages. For example:

12V 10Ah Battery = 120Wh
24V 5Ah Battery = 120Wh → Same capacity despite different voltages!

Part 6. Application of watts and watt hours in batteries

The application of watts and watt-hours in batteries is fundamental across various industries and everyday scenarios:

Battery Selection

Understanding both watts and watt-hours when choosing a battery for a specific application helps ensure compatibility and optimal performance. For example, selecting a battery with sufficient watt-hours ensures a device can operate for the desired duration without frequent recharging.

Electronic Devices

Watts and watt-hours are crucial for determining the power requirements of electronic devices such as smartphones, laptops, and tablets. Manufacturers specify power consumption in watts, while battery capacity is often provided in watt-hours. These metrics allow users to estimate how long a device will operate on a single charge.

Electric Vehicles (EVs)

In the automotive industry, watts and watt-hours play a significant role in electric vehicles. Watts indicate the power output of the vehicle’s motor, influencing its acceleration and performance. Watt-hours, on the other hand, determine the EV’s driving range. Higher watt-hour ratings result in longer distances that can be traveled on a single charge.

Renewable Energy Systems

Watts and watt-hours are essential in renewable energy systems such as solar and wind power. Watts measure the power output of solar panels or wind turbines, while watt-hours quantify the energy stored in batteries for later use. Understanding these metrics helps design efficient and reliable renewable energy setups.

Emergency Power Backup

In emergencies or off-grid locations, watts and watt-hours are critical for backup power systems. Watt-hours determine the capacity of backup batteries to provide electricity during power outages, ensuring uninterrupted operation of essential devices like lights, communication equipment, and medical devices.

Commercial and Industrial Applications

In commercial and industrial settings, watts and watt-hours are used to size batteries for backup power, uninterruptible power supplies (UPS), and energy storage systems. These applications ensure the continuous operation of critical equipment and protect against data loss or production downtime.
