XT90 VS EC5 Connectors: Which is Better for Your Battery?

Which connector is better, XT90 or EC5? XT90 connectors handle up to 90A continuous current (120A peak), while EC5 supports 60A continuous (80A peak). In this article, we will compare and analyze the XT90 and EC5 connectors to help you determine which connector is better for your battery needs.

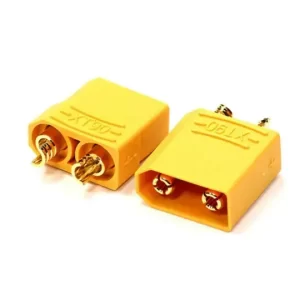

Part 1. What are XT90 connectors?

Many people widely recognize the robust design and reliable performance of the XT90 connector. It features a bullet-style connector with a secure, anti-spark design, making it ideal for high-current applications. The connector’s housing is made of heat-resistant materials, ensuring durability and minimizing the risk of overheating during intense usage. People commonly use XT90 connectors in various applications, including RC vehicles, drones, and electric bicycles.

Part 2. XT90 connectors advantages

High Durability

XT90 connectors are renowned for their robustness, ensuring long-lasting application performance. The sturdy construction prevents damage from vibration, impact, and harsh environmental conditions.

Secure Connection

 XT90 connectors feature a reliable locking mechanism that ensures a secure connection between male and female plugs. This prevents accidental disconnections, especially in high-vibration environments or during intense usage.

Compatibility

We design XT90 connectors to be compatible with a wide range of devices and battery types, offering versatility in usage. Whether it’s RC vehicles, drones, or power tools, these connectors provide seamless compatibility.

Ease of Use

With their ergonomic design and user-friendly construction, XT90 connectors are easy to install and remove. The intuitive plug-and-play nature simplifies setup and maintenance tasks, saving time and effort.

Heat Resistance

The engineering team designs XT90 connectors to withstand high temperatures generated during heavy-duty operations. This heat resistance prevents melting or deformation of the connectors, ensuring reliable performance even in demanding conditions.

High Current Handling

XT90 connectors can handle high currents, making them suitable for power-hungry devices and applications.

XT90 Industrial Use Cases

Electric scooters, Solar power systems, Industrial drones

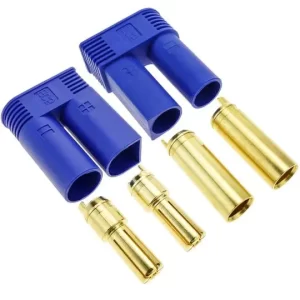

Part 3. What are EC5 connectors?

EC5 connectors are another popular choice for battery connections, especially in the RC hobbyist community. These connectors provide a reliable and efficient solution for high-current applications. The EC5 connector features a compact design with gold-plated connectors, ensuring low resistance and efficient power transfer.

Part 4. EC5 connectors advantages

Secure Connection

One of the critical advantages of EC5 connectors is their secure locking mechanism, which prevents accidental disconnections. This feature is particularly crucial in high-vibration environments or during rigorous activities such as RC racing or aerial photography with drones.

Ease of Installation

The design of EC5 connectors facilitates easy installation, even for users with minimal technical expertise. The plug-and-play design ensures a hassle-free setup process, saving time and effort during installation and maintenance tasks.

Compatibility

EC5 connectors are widely compatible with various devices and battery types, offering versatility to users across different applications. Whether RC cars, boats, airplanes, or drones, these connectors provide seamless compatibility for powering your equipment.

Heat Resistance

The engineering team designed EC5 connectors to withstand high temperatures generated during prolonged use or rapid charging. This heat resistance prevents overheating and melting, ensuring the safe and reliable operation of your electronic devices.

Availability

EC5 connectors are widely available online and in brick-and-mortar stores, ensuring easy access for consumers. This widespread availability makes it convenient for users to purchase and replace connectors as needed.

Low Resistance

The gold-plated EC5 connectors minimize resistance, improving power delivery and reducing energy loss.

Compact Size

EC5 connectors are relatively small compared to other connectors, allowing space-saving installations.

EC5 Typical Users

RC racing hobbyists, Mini quadcopters, DIY electronics

Part 5. XT90 vs EC5: Key specifications compared

Part 6. Which is better, EC5 or XT90?

Size and Shape

XT90 connectors are typically larger and bulkier compared to EC5 connectors. This larger size offers better handling and grip, especially for users with larger hands or gloves. On the other hand, EC5 connectors are more compact and lightweight, making them suitable for applications where space is limited or weight is a concern.

Compatibility

XT90 connectors are compatible with a wide range of devices and battery types, offering versatility in usage. EC5 connectors, while versatile, may not be as widely compatible as XT90 connectors due to their smaller size and lower current rating.

Locking Mechanism

XT90 and EC5 connectors feature a secure locking mechanism to prevent accidental disconnections. However, the locking mechanism of XT90 connectors is often considered more robust and accessible to engage and disengage, providing added peace of mind during operation.

Ease of Installation

EC5 connectors are generally easier to install and remove than XT90 connectors, especially in tight spaces or when working with more miniature connectors. Their compact size and straightforward design make them more user-friendly in specific applications.

Heat Resistance

XT90 connectors are known for their excellent heat resistance, allowing them to withstand high temperatures generated during heavy-duty operations. While EC5 connectors are also heat resistant, they may not be as capable of handling extreme temperatures as XT90 connectors.

Availability

Both XT90 and EC5 connectors are widely available in the market, ensuring easy access for consumers. Hobbyists and professionals in the RC and drone communities may more commonly find XT90 connectors in stores catering to their needs, owing to their larger size and higher current rating.

Current Handling Capacity

The XT90 connector excels in high-current applications and can handle currents up to 90A. On the other hand, EC5 connectors can typically handle currents up to 60A. If your battery demands high current output, the XT90 connector would be preferable.

Quick Decision Guide

✅ Choose XT90 When:

• Require 80A+ continuous current
• Operating in high-vibration environments
• Using LiPo batteries above 6S

✅ Choose EC5 When:

• Space/weight is critical (e.g., racing drones)
• Budget under $3 per connector
• Current below 60A

Industry Expert Recommendations

According to 2023 RC Magazine testing:

• XT90 showed 12% lower resistance at 50A loads
• EC5 connectors won in 10,000-cycle durability tests

Part 7. FAQs about xt90 and ec5 connectors

Is XT90 better than EC5?

It depends on your needs. XT90 connectors are better for high-current applications (up to 90A continuous) and industrial use, while EC5 connectors are more suitable for space-sensitive projects and moderate power needs (up to 60A continuous).

What’s the max current for XT90 vs EC5?

XT90 connectors can handle up to 90A continuous current (120A peak), while EC5 connectors support up to 60A continuous current (80A peak).

Can I use XT90 with EC5 batteries?

No, XT90 and EC5 connectors are not directly compatible due to differences in size and shape. You would need an adapter or to replace one of the connectors.

Which is cheaper: XT90 or EC5?

EC5 connectors are generally cheaper, with prices ranging from $1.8 to $3 per connector, while XT90 connectors typically cost between $2.5 and $4.

Are EC5 connectors good for drones?

Yes, EC5 connectors are widely used in drones, especially for smaller or racing drones where weight and space are critical factors. They are reliable for moderate power needs.

What are XT90 connectors best used for?

XT90 connectors are ideal for high-power applications such as large RC vehicles, electric bikes, solar power systems, and industrial drones that require currents above 60A.

Do XT90 connectors have better heat resistance than EC5?

Yes, XT90 connectors are designed with superior heat resistance, making them more suitable for high-temperature environments and heavy-duty operations compared to EC5 connectors.

Which connector is easier to install: XT90 or EC5?

EC5 connectors are generally easier to install due to their compact size and simpler design, especially in tight spaces. XT90 connectors are bulkier but offer a more robust connection.

Can EC5 connectors handle LiPo batteries?

Yes, EC5 connectors are commonly used with LiPo batteries, especially for applications requiring moderate power output, such as RC cars and drones.

Why choose XT90 over EC5 for high-power applications?

XT90 connectors are preferred for high-power applications because of their higher current rating (90A continuous), better heat resistance, and more robust locking mechanism, ensuring safety and reliability.
