3.7 V 10000mAh Lithium Ion Battery 955565-2P
-
Product Details
-
Specs
-
Capacity Fast Calculator
-
Application
-
Content
-
FAQs
-
Reviews
Product Details
Discharge Rate
Long Cycle Life
Ultra-Low Self-Discharge
Wide Temperature Range
Self-discharge is higher at 100% state of charge (SOC) compared to 70% SOC.
Ufine's custom low-temperature batteries can be used for -40°C to 55°C operation, catering to diverse outdoor scenarios.
Battery Power Check
Before shipment, each lithium battery undergoes comprehensive testing to verify its voltage, current, and charging and discharging parameters, ensuring compliance with standard operational levels for reliable functionality.
Sustainable Manufacturing
Employing A-grade battery cells, these leak-proof batteries maintain an eco-friendly design, prioritizing environmental sustainability in their production and usage.
Applications
The battery is designed for use in various applications, including but not limited to drones, RC vehicles, portable lighting, and medical equipment, showcasing its versatility.

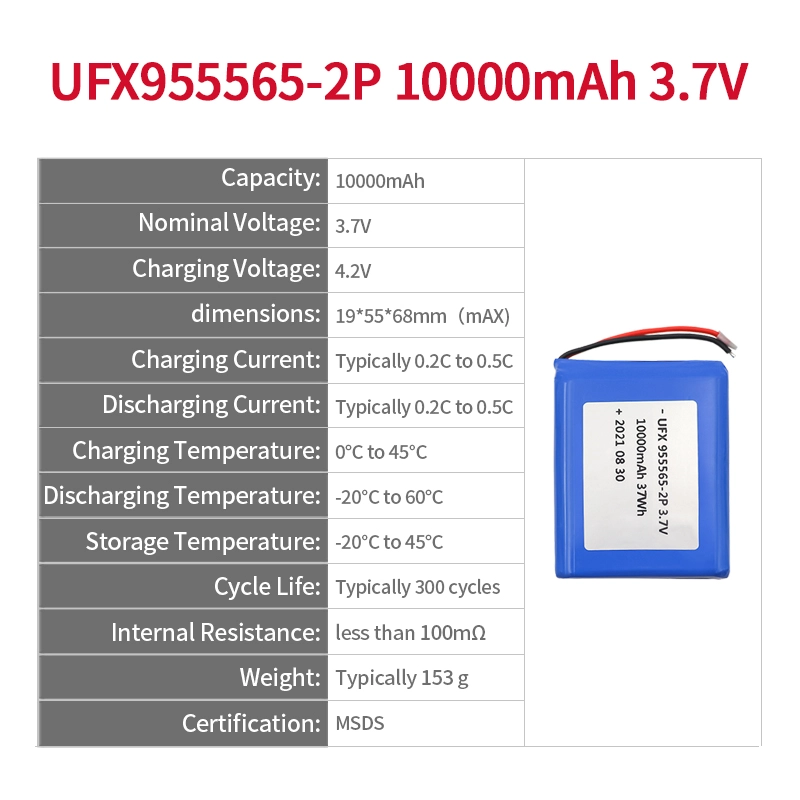

Battery Specification
-
1. Mechanical Characteristics
Cell 955565-2P PCM Yes NTC No Weight appr. 153g Configuration 1S2P -
2. Electrical Specification
Capacity 10000mAh Nominal Voltage 3.7V Energy 37Wh Internal Resistance less than 100mΩ Max. Charge Voltage 4.2V Discharge Cut Off 2.75V Max. Charge Current 5000mA Max. Discharge Current 5000mA Standard Charge Current 2000mA Standard Discharge Current 2000mA Charging Temperature 0℃ to 45℃ Discharging Temperature -20℃ to 60℃ Storage Temp.Range 1 year at -20℃ to +30℃ 3 mos. at -20℃ to +45℃ 1 mo. at -20℃ to +60℃ Cycle life 100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80% -
3. Cell protection
Overcharge Detection 4.28V ±50mV (80 to 200msec delay, release 4.08V ±50mV) Overdischarge Detection 2.4V ±100mV (40 to 120msec. delay, release 3.0V ±100mV) Overcurrent Detection 2.5A to 4.5A (5 to 10msec. delay) Short protection Yes
Lipo Battery Cell Capacity Fast Calculator
Please enter your battery information to calculate the battery capacity and energy.
The capacity calculated by this tool is only an approximate value. If you need an accurate assessment, please contact our professional engineers.
Powering Versatility: Applications of the 3.7V 10000mAh Lithium Ion Battery
The 3.7V 10000mAh Lithium Ion Battery 955565-2P is designed for diverse applications that require reliable, high-capacity power. With its compact design, MSDS certification, and outstanding cycle life, this lithium polymer battery 10000mAh is a preferred choice for manufacturers and innovators worldwide. Below are five specific and practical applications for this powerful battery.
1. Portable Power Banks
The 3.7V battery 10000mAh is ideal for powering portable power banks. With its lightweight design and compact size (195568mm), it ensures convenient portability while providing a reliable energy source. Its high capacity guarantees multiple device charges, making it indispensable for users who are always on the go.
2. Medical Equipment
Medical devices such as portable oxygen concentrators, infusion pumps, and handheld diagnostic tools benefit significantly from the 955565 battery. The battery's low internal resistance and consistent discharge rate provide dependable power, ensuring critical medical equipment functions without interruptions.
3. Wearable Technology and Smart Devices
As wearable technology advances, batteries like the lithium polymer battery 10000mAh are increasingly in demand. This battery is perfect for powering high-performance smartwatches, fitness trackers, and VR headsets. Its long cycle life and stable voltage output enhance user experience and reliability.
4. Robotics and Drones
Robotics and drones require high-capacity batteries for sustained operation, and the 3.7V 10000mAh lithium-ion battery is up to the task. Its excellent energy density and temperature tolerance (operating between -20°C and 60°C) make it suitable for both indoor and outdoor robotic systems and aerial drones.
5. IoT Devices and Smart Home Solutions
Smart home devices like security cameras, smart locks, and IoT-enabled hubs rely on efficient and durable batteries. The 955565 lithium polymer battery delivers long-lasting power, ensuring these devices remain operational without frequent recharges. Its compact size allows seamless integration into space-constrained designs.
Ufine Battery: Your Trusted Partner for Custom Lithium Battery Solutions
As a leading custom lithium battery manufacturer, Ufine Battery specializes in tailoring power solutions to meet your specific needs. Whether for medical devices, IoT systems, or robotics, the 3.7V 10000mAh Lithium Ion Battery 955565-2P offers unmatched performance and reliability. Contact us today for customizations and more information!
Powering Innovation: 3.7V 10000mAh Lithium Ion Battery 955565-2P
The 3.7V 10000mAh Lithium Ion Battery 955565-2P is a high-capacity, versatile power source suitable for various applications. With advanced features, excellent performance, and reliability, it has become a popular choice for manufacturers and users alike. This article explores its specifications, advantages, and usage tips in detail.
Part 1. What Does 955565-2P Mean?
The number 955565 refers to the dimensions of the individual battery cells: 9.5mm thickness, 55mm width, and 65mm height. The suffix 2P, short for 1S2P, indicates the battery pack consists of two cells connected in parallel within a single series (1S) configuration. This structure allows the battery to maintain a nominal voltage of 3.7V while doubling the capacity to 10000mAh.
Part 2. Structure and Components
The 3.7V 10000mAh Lithium Ion Battery 955565-2P comprises two high-quality lithium polymer cells encased in a durable, compact structure. The key components include:
√ Lithium polymer cells: Provide high energy density and reliable performance.

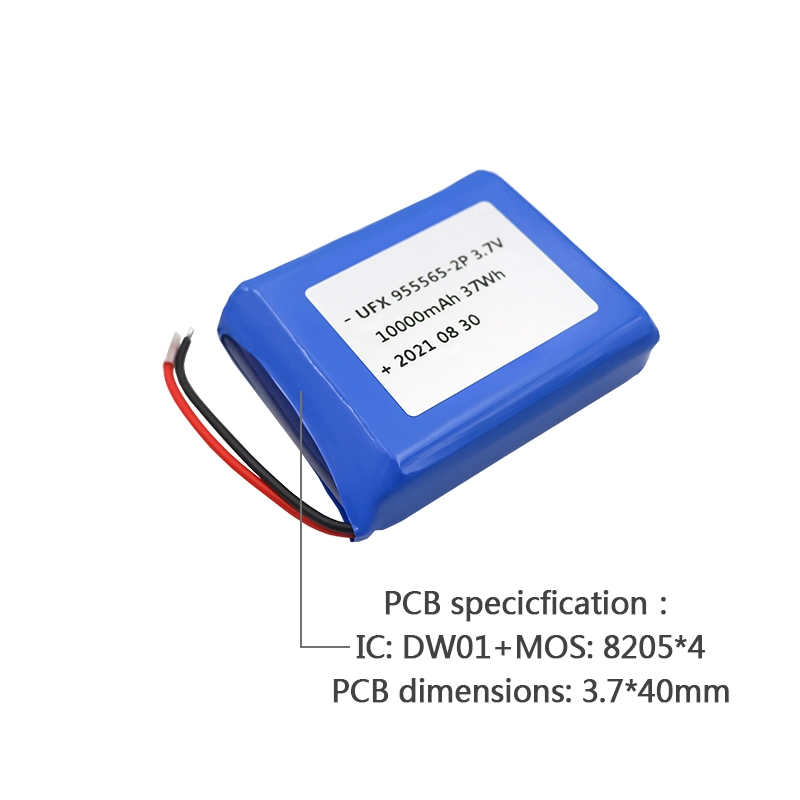

√ PCB (Protection Circuit Board): Offers protection against overcharge, overdischarge, overcurrent, and short circuits, ensuring safety and extending battery life.

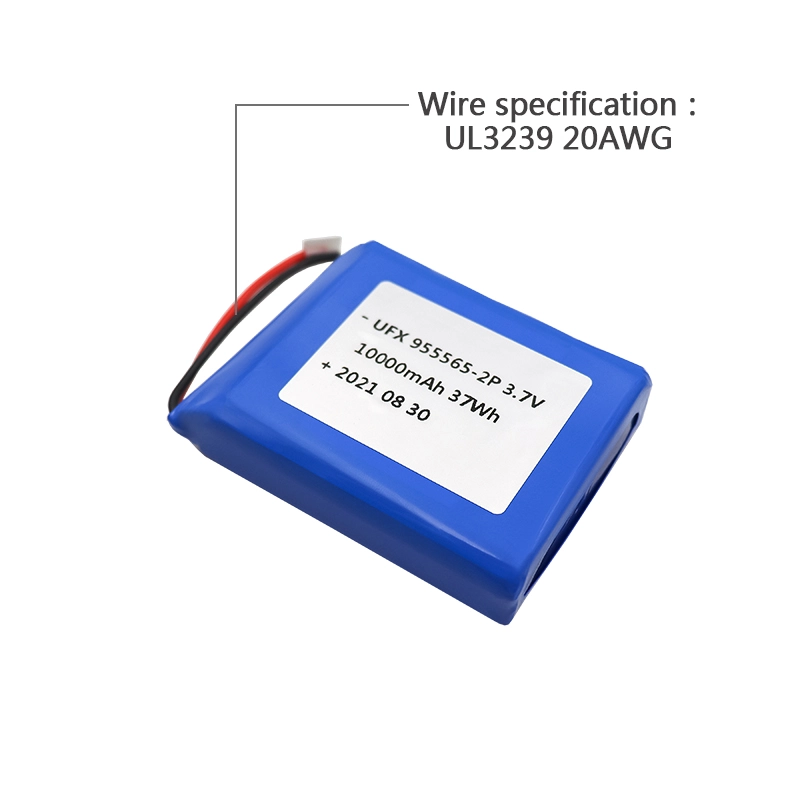

√ Connectors and cables: Equipped with UL3239 24AWG wires , facilitating easy integration into various devices.
Part 3. Why Should You Choose Lithium Polymer Battery?
Lithium polymer batteries, like the 955565-2P, have distinct advantages:
√ Lightweight and compact: Perfect for portable devices.
√ High energy density: Provides longer runtimes without increasing size.
√ Stable performance: Ensures reliable power output for diverse applications.
√ Flexible design: Can be customized to fit specific requirements. These characteristics make lithium polymer batteries an excellent choice for powering modern devices, from IoT gadgets to drones.
Part 4. 10000mAh High Capacity, Widely Used
The 3.7V battery 10000mAh is designed for devices requiring high-capacity power. Common applications include:
√ Portable power banks for extended charging capability.
√ Robotics and drones, where lightweight yet powerful batteries are essential.
√ Smart home devices, such as security cameras and smart locks.
√ Medical equipment like portable oxygen concentrators and diagnostic tools. Its versatile nature and robust performance make it indispensable across industries.
Part 5. How to Extend the Life of 3.7V Battery 10000mAh?
To maximize the lifespan of your lithium polymer battery 10000mAh, follow these tips:
√ Avoid deep discharges: Recharge before the battery drops below 20%.
√ Store at partial charge: Keep the battery at around 50% charge when not in use for long periods.
√ Maintain optimal temperature: Operate and store the battery within its recommended range of -20°C to 45°C.
√ Use the right charger: Charge using a compatible charger with a voltage of 4.2V and a current between 0.2C and 0.5C.
Part 6. Charging and Discharging Tips
Proper charging and discharging practices are crucial for battery health:
√ Charging: Charge the battery at room temperature (0°C to 45°C) using the recommended settings. Avoid overcharging, as it may damage the battery.
√ Discharging: Discharge at a steady current of 0.2C to 0.5C to ensure consistent performance. Do not let the battery completely drain. By following these practices, you can enhance the battery’s performance and ensure its longevity.
Part 7. Conclusion
The 3.7V 10000mAh Lithium Ion Battery 955565-2P is a reliable, high-capacity power solution for a wide range of applications. Its compact design, robust safety features, and adaptability make it a standout product in the market. Whether for consumer electronics, medical equipment, or industrial devices, this battery delivers consistent, dependable energy. Ufine Battery, a leading manufacturer of custom lithium batteries, is committed to providing high-quality products tailored to your specific needs. For more information or customization options, contact us today!
FAQs
-
Can the 3.7V 10000mAh battery be used in high-drain devices?
While this battery is optimized for steady discharge currents (0.2C to 0.5C), it may not be suitable for very high-drain devices. For such applications, consult Ufine Battery for custom high-rate lithium battery solutions. -
Is the 955565-2P battery safe for air transportation?
Yes, the battery complies with MSDS certification requirements, ensuring safety during transportation, including by air. Always check with carriers for additional documentation like UN38.3 if required. -
How does the 955565-2P battery perform in cold environments?
This battery can discharge effectively at temperatures as low as -20°C, making it suitable for devices used in cold climates. However, charging should only occur between 0°C and 45°C for safety. -
Does the battery include built-in protection features?
Yes, it includes a Protection Circuit Board (PCB) that safeguards against overcharge, overdischarge, overcurrent, and short circuits, enhancing reliability and safety. -
What is the shelf life of the 955565-2P battery?
When stored at a partial charge (around 50%) and in proper conditions (-20°C to 45°C), the battery maintains performance for an extended period, typically up to a year without significant degradation. -
Is this battery compatible with solar-powered devices?
Yes, the 3.7V battery 10000mAh can be used in solar-powered systems, provided the voltage and charging parameters are within the battery’s specifications. It’s a popular choice for portable solar generators. -
What makes the 955565-2P battery eco-friendly?
Lithium-ion batteries like the 955565-2P are more environmentally friendly than traditional batteries due to their higher energy efficiency, longer lifespan, and recyclability. Ufine Battery also offers recycling advice to minimize environmental impact.
Reviews
High Energy Density
It stores large amounts of energy in a smaller and lighter package
Longer Cycle Life
Withstands extensive charge and discharge cycles
Low Self-Discharge
Maintains power longer when not in use
Safety
Minimizes the risk of accidents and ensures safe operation
